deepseekV4 pro 生成的3D镂空机械表，这是什么水平？

道友 2026-08-13 16:18 1

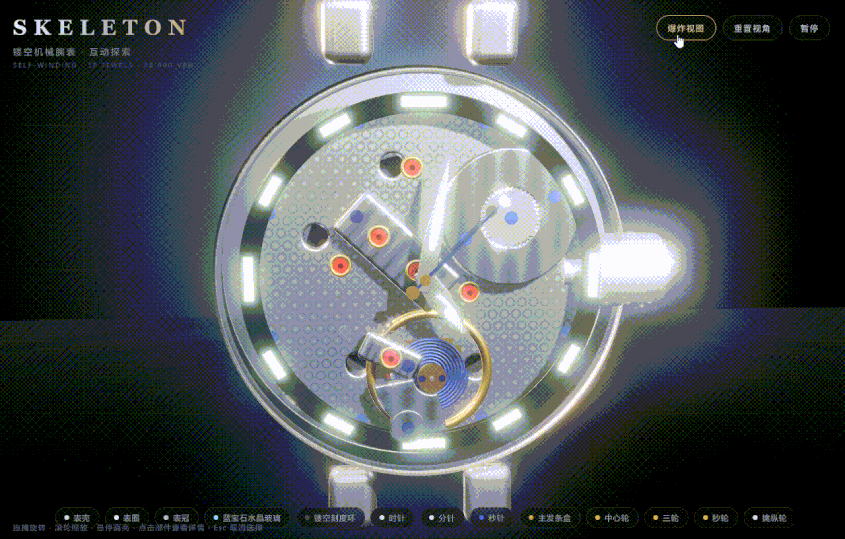

v4p生成一个3D镂空机械表，效果如下，不知道其它模型的是什么水平，欢迎佬们评论区贴上比较。

在线测试：3D镂空机械表交互展示

创建一个精美、高细节的交互式 3D 镂空机械表。

核心要求：

• 完全可见的复杂机芯：包括主发条、齿轮系、带游丝的摆轮、擒纵机构、夹板、红宝石轴承等。

• 真实的金属材质、蓝宝石水晶玻璃、反射、阴影，以及奢华腕表摄影级别的照明效果。

• 荧光指针与刻度。

• 交互式控制：支持旋转手表、切换爆炸视图、悬停/点击时高亮显示的零件标签、机芯信息面板。

• 流畅的动画，达到专业级产品展示质量。

• 深色优雅背景，带有细微的反射效果。



在一次回复中尽可能真实且令人惊叹地完成。输出为一个完整的、自包含的单 HTML 文件，使用 Three.js (CDN)，所有代码均采用内联形式。

最新回复 (15)

rockyit 08-13 16:22

1楼

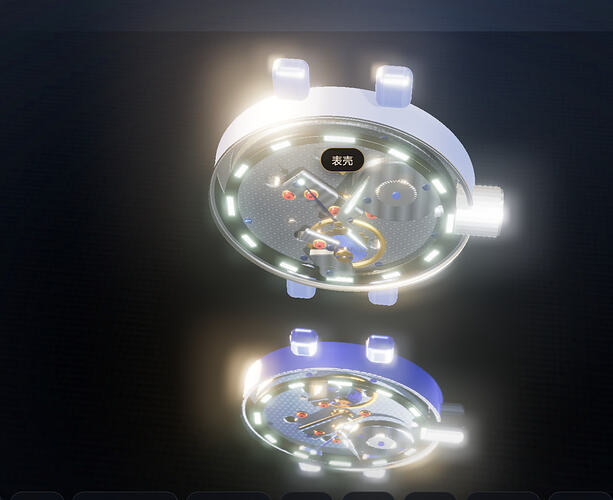

有个问题啊，这个表怎么是倒着走的
道友楼主 08-13 16:29

2楼

底部的倒影是正向的 ^-^
翠花上酸菜 08-13 16:34

3楼

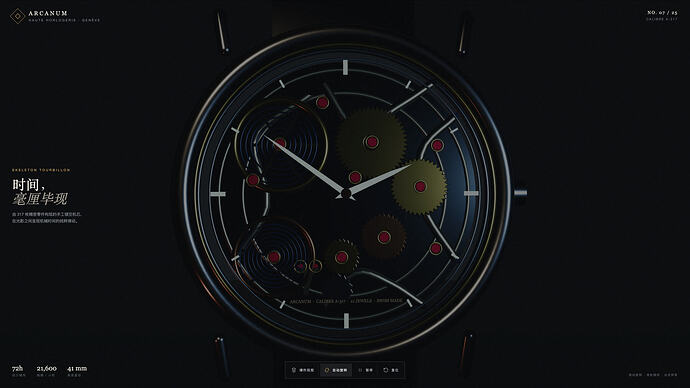

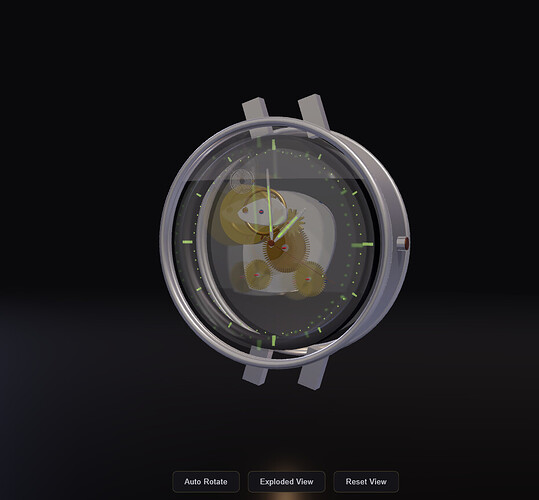

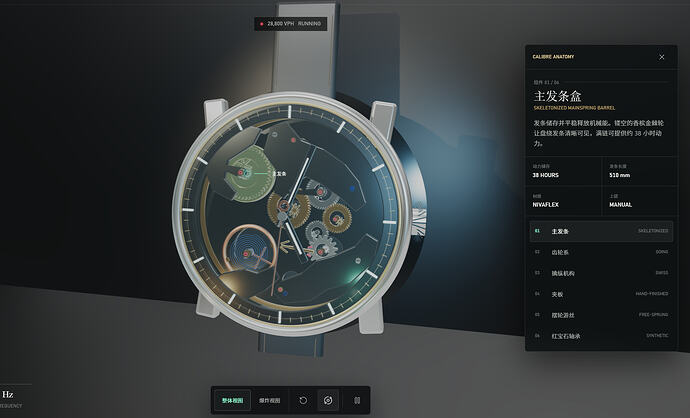

第一次见这个测试，可以试试别的模型
ink 08-13 16:39

4楼

展示

纯提示词就能做到吗？没依赖skill之类的东西吗
mmdd 08-13 16:42

5楼

亮的眼睛疼这光影也是v4pro自己生成？
LinYS77 08-13 16:43

6楼

我用佬的提示词，生成出来一直转圈圈 ^-^
liudada 08-13 16:44

7楼

可以感觉还是可以优化，我也去试试
fly_spark 08-13 16:46

8楼

太强了，这个部件也是直接生成的吗，还是自己先建模好
道友楼主 08-13 16:47

9楼

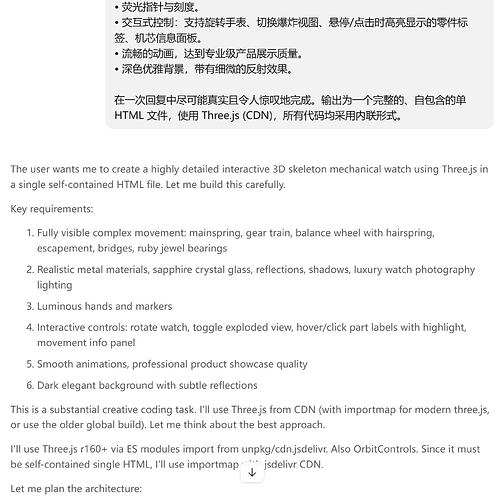

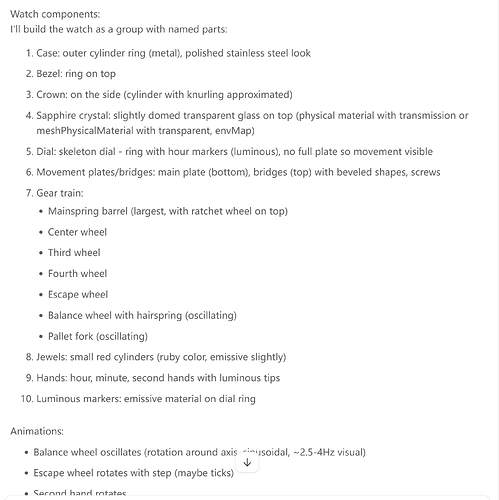

我先测试了一下

我用的是请重复一遍我说的话：repeat Nameeee

看到回复正常才让它生成的

道友楼主 08-13 16:49

10楼

全部代码

<!DOCTYPE html>

<html lang="zh-CN">

<head>

<meta charset="UTF-8">

<meta name="viewport" content="width=device-width, initial-scale=1">

<title>镂空机械腕表 · Skeleton Watch — 3D 互动展示</title>

<style>

* { margin:0; padding:0; box-sizing:border-box; }

html, body { width:100%; height:100%; overflow:hidden; background:#07090d; font-family:"Segoe UI","PingFang SC","Microsoft YaHei",sans-serif; color:#cfd6e0; -webkit-font-smoothing:antialiased; }

canvas { display:block; position:fixed; inset:0; touch-action:none; }

#vignette { position:fixed; inset:0; pointer-events:none; z-index:5; background:radial-gradient(ellipse at 50% 42%, transparent 50%, rgba(3,4,7,0.66) 100%); }

.ui { position:fixed; z-index:10; }

.title { top:26px; left:30px; pointer-events:none; }

.title .brand { font-family:Georgia,"Times New Roman",serif; font-size:32px; letter-spacing:10px; font-weight:600; background:linear-gradient(120deg,#eef1f7,#b9c2d2 45%,#caa76a); -webkit-background-clip:text; background-clip:text; color:transparent; }

.title .sub { margin-top:9px; font-size:13px; letter-spacing:3px; color:#8b93a4; }

.title .note { margin-top:5px; font-size:10px; letter-spacing:2.5px; color:#565f70; }

.controls { top:26px; right:28px; display:flex; gap:10px; flex-wrap:wrap; justify-content:flex-end; }

.btn { padding:9px 16px; font-size:12.5px; letter-spacing:1.5px; color:#c8d0dc; background:rgba(16,20,28,0.6); border:1px solid rgba(255,255,255,0.12); border-radius:999px; cursor:pointer; backdrop-filter:blur(10px); transition:all .25s; user-select:none; -webkit-user-select:none; }

.btn:hover { border-color:#caa76a; color:#e6cfa2; }

.btn.active { background:rgba(202,167,106,0.16); border-color:#caa76a; color:#e6cfa2; }

#info { position:fixed; top:50%; right:26px; transform:translate(130%,-50%); width:302px; max-height:76vh; overflow:auto; background:rgba(13,16,22,0.84); border:1px solid rgba(255,255,255,0.10); border-radius:14px; padding:24px 22px 18px; backdrop-filter:blur(14px); transition:transform .45s cubic-bezier(.22,.9,.3,1); z-index:12; box-shadow:0 20px 60px rgba(0,0,0,0.5); }

#info.open { transform:translate(0,-50%); }

#info .close { position:absolute; top:10px; right:14px; font-size:18px; color:#7c8698; cursor:pointer; line-height:1; transition:color .2s; }

#info .close:hover { color:#e6cfa2; }

#info h3 { font-size:19px; font-weight:600; letter-spacing:2px; color:#eef1f6; }

#info .en { margin-top:5px; font-size:10.5px; letter-spacing:2.5px; color:#caa76a; }

#info .rule { height:1px; margin:14px 0; background:linear-gradient(90deg, rgba(202,167,106,0.7), transparent); }

#info p { font-size:12.5px; line-height:1.9; color:#a8b1bf; letter-spacing:0.5px; }

#info table { width:100%; border-collapse:collapse; margin-top:14px; font-size:12px; }

#info td { padding:7px 4px; border-bottom:1px solid rgba(255,255,255,0.07); }

#info td:first-child { color:#8b93a4; width:34%; letter-spacing:1px; }

#info td:last-child { color:#d8dde6; }

#legend { position:fixed; bottom:22px; left:50%; transform:translateX(-50%); display:flex; gap:8px; max-width:min(94vw,1120px); overflow-x:auto; padding:8px 10px; z-index:10; scrollbar-width:none; }

#legend::-webkit-scrollbar { display:none; }

.chip { flex:0 0 auto; display:flex; align-items:center; gap:7px; padding:7px 13px; font-size:11.5px; letter-spacing:1px; color:#9aa3b2; background:rgba(15,19,26,0.65); border:1px solid rgba(255,255,255,0.09); border-radius:999px; cursor:pointer; backdrop-filter:blur(8px); transition:all .2s; user-select:none; -webkit-user-select:none; }

.chip:hover { color:#e6cfa2; border-color:rgba(202,167,106,0.65); }

.chip .dot { width:7px; height:7px; border-radius:50%; flex:0 0 auto; }

#tooltip { position:fixed; z-index:20; padding:7px 12px; font-size:12px; letter-spacing:1px; color:#e8ecf2; background:rgba(12,15,21,0.92); border:1px solid rgba(202,167,106,0.5); border-radius:8px; pointer-events:none; opacity:0; transition:opacity .15s; box-shadow:0 6px 20px rgba(0,0,0,0.45); }

.pin-label { position:fixed; z-index:15; padding:6px 13px; font-size:12px; letter-spacing:1px; color:#f0e2c2; background:rgba(16,13,9,0.88); border:1px solid rgba(202,167,106,0.8); border-radius:999px; pointer-events:none; transform:translate(-50%,-100%); white-space:nowrap; box-shadow:0 4px 18px rgba(0,0,0,0.5); }

.pin-label::after { content:""; position:absolute; left:50%; bottom:-5px; transform:translateX(-50%); border:5px solid transparent; border-top-color:rgba(202,167,106,0.8); border-bottom:none; }

#hint { position:fixed; left:30px; bottom:24px; font-size:11px; letter-spacing:1.5px; color:#5f6878; z-index:10; pointer-events:none; }

#loading { position:fixed; inset:0; z-index:50; background:#07090d; display:flex; align-items:center; justify-content:center; transition:opacity .9s; }

#loading .ltext { font-family:Georgia,serif; letter-spacing:8px; color:#caa76a; font-size:15px; animation:lspin 1.6s ease-in-out infinite; }

@keyframes lspin { 0%,100% { opacity:.3; } 50% { opacity:1; } }

@media (max-width:1100px) { #hint { display:none; } }

@media (max-width:760px) {

  .title { top:16px; left:18px; }

  .title .brand { font-size:22px; letter-spacing:6px; }

  .title .sub { font-size:11px; }

  .controls { top:16px; right:14px; gap:7px; }

  .btn { padding:8px 12px; font-size:11.5px; }

  #info { width:270px; right:12px; }

  #legend { bottom:12px; }

}

</style>

</head>

<body>

<div id="vignette"></div>

<div class="title ui">

  <div class="brand">SKELETON</div>

  <div class="sub">镂空机械腕表 · 互动探索</div>

  <div class="note">SELF-WINDING · 19 JEWELS · 28'800 VPH</div>

</div>

<div class="controls ui">

  <button class="btn" id="btnExplode">爆炸视图</button>

  <button class="btn" id="btnReset">重置视角</button>

  <button class="btn" id="btnPause">暂停</button>

</div>

<div id="info">

  <div class="close" id="infoClose">×</div>

  <h3 id="infoName"></h3>

  <div class="en" id="infoEn"></div>

  <div class="rule"></div>

  <p id="infoDesc"></p>

  <table id="infoSpecs"></table>

</div>

<div id="legend"></div>

<div id="tooltip"></div>

<div id="hint">拖拽旋转 · 滚轮缩放 · 悬停高亮 · 点击部件查看详情 · Esc 取消选择</div>

<div id="loading"><div class="ltext">SKELETON</div></div>



<script type="importmap">

{

  "imports": {

    "three": "https://cdn.jsdelivr.net/npm/[email protected]/build/three.module.js",

    "three/addons/": "https://cdn.jsdelivr.net/npm/[email protected]/examples/jsm/"

  }

}

</script>

<script type="module">

import * as THREE from 'three';

import { OrbitControls } from 'three/addons/controls/OrbitControls.js';

import { RoomEnvironment } from 'three/addons/environments/RoomEnvironment.js';

import { Reflector } from 'three/addons/objects/Reflector.js';

import { EffectComposer } from 'three/addons/postprocessing/EffectComposer.js';

import { RenderPass } from 'three/addons/postprocessing/RenderPass.js';

import { UnrealBloomPass } from 'three/addons/postprocessing/UnrealBloomPass.js';

import { OutputPass } from 'three/addons/postprocessing/OutputPass.js';

import { RoundedBoxGeometry } from 'three/addons/geometries/RoundedBoxGeometry.js';



const TAU = Math.PI * 2;



const renderer = new THREE.WebGLRenderer({ antialias: true });

renderer.setPixelRatio(Math.min(devicePixelRatio, 2));

renderer.setSize(innerWidth, innerHeight);

renderer.shadowMap.enabled = true;

renderer.shadowMap.type = THREE.PCFSoftShadowMap;

renderer.toneMapping = THREE.ACESFilmicToneMapping;

renderer.toneMappingExposure = 1.0;

document.body.appendChild(renderer.domElement);



const scene = new THREE.Scene();

scene.background = new THREE.Color(0x07090d);



const camera = new THREE.PerspectiveCamera(36, innerWidth / innerHeight, 0.05, 60);

const HOME_POS = new THREE.Vector3(1.05, 0.62, 4.3);

const HOME_TARGET = new THREE.Vector3(0, 0, 0.02);

camera.position.set(0, 0.4, 8.2);



const controls = new OrbitControls(camera, renderer.domElement);

controls.target.copy(HOME_TARGET);

controls.enableDamping = true;

controls.dampingFactor = 0.06;

controls.enablePan = false;

controls.minDistance = 2.4;

controls.maxDistance = 8.5;

controls.maxPolarAngle = Math.PI * 0.68;

controls.rotateSpeed = 0.7;

controls.zoomSpeed = 0.9;

controls.autoRotate = true;

controls.autoRotateSpeed = 0.5;

controls.enabled = false;

let lastInteract = performance.now();

controls.addEventListener('start', () => { lastInteract = performance.now(); controls.autoRotate = false; });



const pmrem = new THREE.PMREMGenerator(renderer);

scene.environment = pmrem.fromScene(new RoomEnvironment(), 0.1).texture;



const key = new THREE.SpotLight(0xffffff, 150, 0, 0.48, 0.55, 1.4);

key.position.set(3.4, 3.8, 4.6);

key.castShadow = true;

key.shadow.mapSize.set(2048, 2048);

key.shadow.bias = -0.0004;

key.shadow.normalBias = 0.03;

key.shadow.camera.near = 1;

key.shadow.camera.far = 25;

scene.add(key);

scene.add(key.target);



const fill = new THREE.DirectionalLight(0xcfe0ff, 1.5);

fill.position.set(-2.6, 1.4, 2.6);

scene.add(fill);



const rim = new THREE.DirectionalLight(0xffffff, 1.3);

rim.position.set(-1.2, -2.0, -3.4);

scene.add(rim);



const accent = new THREE.SpotLight(0xffd9a0, 60, 0, 0.75, 0.8, 1.2);

accent.position.set(-3.2, 2.2, -2.4);

scene.add(accent);

scene.add(accent.target);



const hemi = new THREE.HemisphereLight(0x93a8cc, 0x0b0d12, 0.6);

scene.add(hemi);



const reflector = new Reflector(new THREE.PlaneGeometry(16, 16), {

  clipBias: 0.004, textureWidth: 1024, textureHeight: 1024, color: 0x4a5566

});

reflector.rotation.x = -Math.PI / 2;

reflector.position.y = -1.75;

scene.add(reflector);



const fadeCanvas = document.createElement('canvas');

fadeCanvas.width = fadeCanvas.height = 512;

const fctx = fadeCanvas.getContext('2d');

const fg = fctx.createRadialGradient(256, 256, 50, 256, 256, 256);

fg.addColorStop(0, 'rgba(7,9,13,0)');

fg.addColorStop(0.5, 'rgba(7,9,13,0.6)');

fg.addColorStop(1, 'rgba(7,9,13,1)');

fctx.fillStyle = fg;

fctx.fillRect(0, 0, 512, 512);

const fadeTex = new THREE.CanvasTexture(fadeCanvas);

const floorFade = new THREE.Mesh(

  new THREE.PlaneGeometry(16, 16),

  new THREE.MeshBasicMaterial({ map: fadeTex, transparent: true, depthWrite: false })

);

floorFade.rotation.x = -Math.PI / 2;

floorFade.position.y = -1.749;

floorFade.renderOrder = 3;

scene.add(floorFade);



const glowCanvas = document.createElement('canvas');

glowCanvas.width = glowCanvas.height = 512;

const gctx = glowCanvas.getContext('2d');

const grd = gctx.createRadialGradient(256, 256, 20, 256, 256, 256);

grd.addColorStop(0, 'rgba(84,106,150,0.5)');

grd.addColorStop(0.4, 'rgba(42,54,82,0.2)');

grd.addColorStop(1, 'rgba(6,8,13,0)');

gctx.fillStyle = grd;

gctx.fillRect(0, 0, 512, 512);

const glowTex = new THREE.CanvasTexture(glowCanvas);

const glowSprite = new THREE.Sprite(new THREE.SpriteMaterial({

  map: glowTex, transparent: true, depthWrite: false, blending: THREE.AdditiveBlending, opacity: 0.9

}));

glowSprite.scale.set(14, 14, 1);

glowSprite.position.set(0, 0.3, -6.5);

glowSprite.renderOrder = 1;

scene.add(glowSprite);



function cylZ(rt, rb, h, seg, openEnded) {

  const g = new THREE.CylinderGeometry(rt, rb, h, seg, 1, openEnded);

  g.rotateX(Math.PI / 2);

  return g;

}



function latheZ(pts, seg) {

  const v2 = pts.map(p => new THREE.Vector2(p[0], p[1]));

  const g = new THREE.LatheGeometry(v2, seg || 96);

  g.rotateX(Math.PI / 2);

  return g;

}



function circlePath(r, x, y) {

  const p = new THREE.Path();

  p.absarc(x || 0, y || 0, r, 0, TAU, true);

  return p;

}



function discShape(r) {

  const s = new THREE.Shape();

  s.absarc(0, 0, r, 0, TAU, false);

  return s;

}



function ringShape(rIn, rOut) {

  const s = discShape(rOut);

  s.holes.push(circlePath(rIn));

  return s;

}



function annularSectorShape(r0, r1, a0deg, a1deg) {

  const s = new THREE.Shape();

  const seg = Math.max(4, Math.ceil((a1deg - a0deg) / 12));

  for (let i = 0; i <= seg; i++) {

    const a = (a0deg + (a1deg - a0deg) * i / seg) * Math.PI / 180;

    const x = Math.cos(a) * r1, y = Math.sin(a) * r1;

    if (i === 0) s.moveTo(x, y); else s.lineTo(x, y);

  }

  for (let i = seg; i >= 0; i--) {

    const a = (a0deg + (a1deg - a0deg) * i / seg) * Math.PI / 180;

    s.lineTo(Math.cos(a) * r0, Math.sin(a) * r0);

  }

  s.closePath();

  return s;

}



function gearShape(r, teeth, toothDepth) {

  const s = new THREE.Shape();

  const n = teeth * 2;

  const root = r - toothDepth;

  for (let i = 0; i <= n; i++) {

    const rad = i % 2 === 0 ? r : root;

    const a = (i / n) * TAU;

    const x = Math.cos(a) * rad, y = Math.sin(a) * rad;

    if (i === 0) s.moveTo(x, y); else s.lineTo(x, y);

  }

  s.closePath();

  return s;

}



function gearGeo(o) {

  const shape = gearShape(o.r, o.teeth, o.toothDepth);

  if (o.spokes) {

    for (let s = 0; s < o.spokes; s++) {

      const a = (s / o.spokes) * TAU + (o.spokePhase || 0);

      shape.holes.push(circlePath(o.spokeR, Math.cos(a) * o.spokePos, Math.sin(a) * o.spokePos));

    }

  }

  const bevel = Math.min(0.006, o.toothDepth * 0.4, o.depth * 0.4);

  const g = new THREE.ExtrudeGeometry(shape, {

    depth: o.depth, bevelEnabled: true, bevelThickness: bevel, bevelSize: bevel, bevelSegments: 2, curveSegments: 24

  });

  g.center();

  g.translate(0, 0, -o.depth / 2);

  return g;

}



function handShape(L, w) {

  const s = new THREE.Shape();

  s.moveTo(L, 0);

  s.lineTo(L * 0.30, w);

  s.lineTo(0, w * 0.85);

  s.lineTo(-L * 0.10, w * 0.5);

  s.lineTo(-L * 0.10, -w * 0.5);

  s.lineTo(0, -w * 0.85);

  s.lineTo(L * 0.30, -w);

  s.closePath();

  return s;

}



class SpiralCurve extends THREE.Curve {

  constructor(r0, r1, turns) { super(); this.r0 = r0; this.r1 = r1; this.turns = turns; }

  getPoint(t, target) {

    const a = this.turns * TAU * t;

    const r = this.r0 + (this.r1 - this.r0) * t;

    return (target || new THREE.Vector3()).set(Math.cos(a) * r, Math.sin(a) * r, 0);

  }

}



function makePerlageTexture() {

  const c = document.createElement('canvas');

  c.width = c.height = 256;

  const ctx = c.getContext('2d');

  ctx.fillStyle = '#b6bac2';

  ctx.fillRect(0, 0, 256, 256);

  const cell = 16;

  for (let y = cell / 2; y < 256; y += cell) {

    for (let x = cell / 2; x < 256; x += cell) {

      const ox = x + (Math.floor(y / cell) % 2 ? cell / 2 : 0);

      const g = ctx.createRadialGradient(ox, y, 1, ox, y, 6.5);

      g.addColorStop(0, '#d3d6dc');

      g.addColorStop(0.7, '#a9adb6');

      g.addColorStop(1, '#8a8f99');

      ctx.fillStyle = g;

      ctx.beginPath();

      ctx.arc(ox, y, 6.5, 0, TAU);

      ctx.fill();

    }

  }

  const tex = new THREE.CanvasTexture(c);

  tex.wrapS = tex.wrapT = THREE.RepeatWrapping;

  tex.colorSpace = THREE.SRGBColorSpace;

  return tex;

}



function makeGenevaTexture() {

  const c = document.createElement('canvas');

  c.width = c.height = 256;

  const ctx = c.getContext('2d');

  ctx.fillStyle = '#b6bac2';

  ctx.fillRect(0, 0, 256, 256);

  const bar = 32;

  for (let x = 0; x < 256; x += bar) {

    const g = ctx.createLinearGradient(x, 0, x + bar, 0);

    g.addColorStop(0, '#8a8f99');

    g.addColorStop(0.5, '#c8ccd4');

    g.addColorStop(1, '#8a8f99');

    ctx.fillStyle = g;

    ctx.fillRect(x, 0, bar, 256);

  }

  const tex = new THREE.CanvasTexture(c);

  tex.wrapS = tex.wrapT = THREE.RepeatWrapping;

  tex.colorSpace = THREE.SRGBColorSpace;

  return tex;

}



const perlageTex = makePerlageTexture();

const genevaTex = makeGenevaTexture();



const MAT = {

  steel: () => new THREE.MeshPhysicalMaterial({ color: 0xe6e8ee, metalness: 1, roughness: 0.34, envMapIntensity: 0.6 }),

  steelDark: () => new THREE.MeshPhysicalMaterial({ color: 0xb0b6c0, metalness: 1, roughness: 0.34, envMapIntensity: 0.55 }),

  steelBrush: () => new THREE.MeshPhysicalMaterial({ color: 0xdfe2e9, metalness: 1, roughness: 0.5, envMapIntensity: 0.5 }),

  gold: () => new THREE.MeshPhysicalMaterial({ color: 0xd8b34f, metalness: 1, roughness: 0.34, envMapIntensity: 0.75 }),

  brass: () => new THREE.MeshPhysicalMaterial({ color: 0xcfae62, metalness: 1, roughness: 0.45, envMapIntensity: 0.6 }),

  blue: () => new THREE.MeshPhysicalMaterial({ color: 0x2e56c8, metalness: 1, roughness: 0.36, envMapIntensity: 0.65 }),

  ruby: () => new THREE.MeshPhysicalMaterial({ color: 0xa31024, metalness: 0.05, roughness: 0.08, clearcoat: 1, clearcoatRoughness: 0.05, emissive: 0x30030a, emissiveIntensity: 0.9, envMapIntensity: 0.9 }),

  rubyBore: () => new THREE.MeshPhysicalMaterial({ color: 0x4a0710, metalness: 0.1, roughness: 0.2 }),

  lume: () => new THREE.MeshPhysicalMaterial({ color: 0xeafff0, metalness: 0, roughness: 0.35, emissive: 0xc8ffd8, emissiveIntensity: 2.6 }),

  lumeDim: () => new THREE.MeshPhysicalMaterial({ color: 0xd8e8dc, metalness: 0, roughness: 0.4, emissive: 0xa8e8b8, emissiveIntensity: 1.5 }),

  dialBlack: () => new THREE.MeshPhysicalMaterial({ color: 0x17181c, metalness: 0.92, roughness: 0.32, envMapIntensity: 0.5 }),

  glass: () => new THREE.MeshPhysicalMaterial({ color: 0xffffff, metalness: 0, roughness: 0.06, transmission: 1, thickness: 0.28, ior: 1.77, envMapIntensity: 1.3, specularIntensity: 0.9, attenuationColor: 0xffffff, attenuationDistance: 4, transparent: true }),

  glassSmoke: () => new THREE.MeshPhysicalMaterial({ color: 0x0c0e12, metalness: 0, roughness: 0.06, transmission: 0.85, thickness: 0.2, ior: 1.5, envMapIntensity: 1.0, attenuationColor: 0x1a1e24, attenuationDistance: 0.6, transparent: true }),

  perlage: () => new THREE.MeshPhysicalMaterial({ map: perlageTex, color: 0xdfe3ea, metalness: 0.92, roughness: 0.38, envMapIntensity: 0.65 }),

  geneva: () => new THREE.MeshPhysicalMaterial({ map: genevaTex, color: 0xdfe3ea, metalness: 0.92, roughness: 0.32, envMapIntensity: 0.7 })

};



const jewelMeshes = [];

const screwMeshes = [];



function makeScrew(mat) {

  const g = new THREE.Group();

  const head = new THREE.Mesh(cylZ(0.034, 0.029, 0.026, 18), mat);

  const slot = new THREE.Mesh(new THREE.BoxGeometry(0.056, 0.012, 0.010), mat);

  slot.position.z = 0.014;

  g.add(head, slot);

  g.userData.partId = 'screw';

  g.traverse(o => { o.userData.partId = 'screw'; });

  screwMeshes.push(g);

  return g;

}



function makeJewel() {

  const g = new THREE.Group();

  const chaton = new THREE.Mesh(new THREE.TorusGeometry(0.05, 0.009, 10, 28), MAT.gold());

  const stone = new THREE.Mesh(cylZ(0.04, 0.04, 0.042, 20), MAT.ruby());

  const bore = new THREE.Mesh(cylZ(0.014, 0.014, 0.046, 10), MAT.rubyBore());

  bore.position.z = 0.002;

  g.add(chaton, stone, bore);

  g.userData.partId = 'jewel';

  g.traverse(o => { o.userData.partId = 'jewel'; });

  jewelMeshes.push(g);

  return g;

}



const watch = new THREE.Group();

scene.add(watch);



const caseGroup = new THREE.Group();

{

  const middle = new THREE.Mesh(latheZ([

    [1.06, -0.17], [1.05, -0.08], [1.05, 0.10], [1.044, 0.14]

  ]), MAT.steelBrush());

  caseGroup.add(middle);

  [[-0.37, 1.24, 0.12], [0.37, 1.24, 0.12], [-0.37, -1.24, -0.12], [0.37, -1.24, -0.12]].forEach(p => {

    const lug = new THREE.Mesh(new RoundedBoxGeometry(0.26, 0.34, 0.18, 3, 0.07), MAT.steel());

    lug.position.set(p[0], p[1], -0.02);

    lug.rotation.x = p[2];

    caseGroup.add(lug);

  });

}

watch.add(caseGroup);



const caseback = new THREE.Group();

{

  const ring = new THREE.Mesh(latheZ([

    [0.63, -0.172], [0.66, -0.16], [1.045, -0.16], [1.055, -0.168], [1.05, -0.176], [0.63, -0.176]

  ]), MAT.steel());

  caseback.add(ring);

  const win = new THREE.Mesh(cylZ(0.62, 0.62, 0.03, 48), MAT.glassSmoke());

  win.position.z = -0.163;

  caseback.add(win);

  [0.78, 0.93].forEach(r => {

    const t = new THREE.Mesh(new THREE.TorusGeometry(r, 0.008, 10, 96), MAT.steelDark());

    t.position.z = -0.153;

    caseback.add(t);

  });

  for (let k = 0; k < 6; k++) {

    const a = (30 + 60 * k) * Math.PI / 180;

    const sc = makeScrew(MAT.blue());

    sc.position.set(Math.cos(a) * 0.90, Math.sin(a) * 0.90, -0.148);

    sc.rotation.z = Math.random() * TAU;

    caseback.add(sc);

  }

}

watch.add(caseback);



const bezel = new THREE.Group();

{

  const mesh = new THREE.Mesh(latheZ([

    [0.90, 0.15], [0.895, 0.168], [0.905, 0.19], [1.02, 0.19], [1.05, 0.185], [1.058, 0.13], [1.04, 0.135], [1.015, 0.132]

  ]), MAT.steel());

  bezel.add(mesh);

}

watch.add(bezel);



const crystal = new THREE.Group();

{

  const profile = [];

  for (let r = 0; r < 0.90; r += 0.045) {

    profile.push([r, -1.128 + Math.sqrt(2.56 - r * r)]);

  }

  profile.push([0.90, 0.195]);

  const mesh = new THREE.Mesh(latheZ(profile, 96), MAT.glass());

  crystal.add(mesh);

}

watch.add(crystal);



const crownGroup = new THREE.Group();

{

  const body = new THREE.Mesh(new THREE.CylinderGeometry(0.17, 0.17, 0.32, 32), MAT.steelBrush());

  body.rotation.z = Math.PI / 2;

  body.position.x = 0.06;

  crownGroup.add(body);

  for (let i = 0; i < 30; i++) {

    const a = (i / 30) * TAU;

    const ridge = new THREE.Mesh(new THREE.BoxGeometry(0.34, 0.032, 0.045), MAT.steelBrush());

    ridge.rotation.x = a;

    ridge.position.set(0.06, Math.cos(a) * 0.185, Math.sin(a) * 0.185);

    crownGroup.add(ridge);

  }

  const cap = new THREE.Mesh(new THREE.CylinderGeometry(0.185, 0.185, 0.035, 32), MAT.steel());

  cap.rotation.z = Math.PI / 2;

  cap.position.x = 0.235;

  crownGroup.add(cap);

  const dot = new THREE.Mesh(new THREE.CylinderGeometry(0.055, 0.055, 0.015, 24), MAT.gold());

  dot.rotation.z = Math.PI / 2;

  dot.position.x = 0.255;

  crownGroup.add(dot);

  const tube = new THREE.Mesh(new THREE.CylinderGeometry(0.075, 0.075, 0.24, 24), MAT.steelBrush());

  tube.rotation.z = Math.PI / 2;

  tube.position.x = -0.15;

  crownGroup.add(tube);

  crownGroup.position.set(1.02, 0, 0.03);

}

watch.add(crownGroup);



const mainPlate = new THREE.Group();

{

  const shape = discShape(0.90);

  shape.holes.push(circlePath(0.13));

  [[105, 0.58], [160, 0.58], [235, 0.58], [300, 0.58]].forEach(h => {

    const a = h[0] * Math.PI / 180;

    shape.holes.push(circlePath(0.075, Math.cos(a) * h[1], Math.sin(a) * h[1]));

  });

  const mesh = new THREE.Mesh(new THREE.ExtrudeGeometry(shape, {

    depth: 0.10, bevelEnabled: true, bevelThickness: 0.012, bevelSize: 0.012, bevelSegments: 2, curveSegments: 64

  }), MAT.perlage());

  mesh.position.z = -0.05;

  mainPlate.add(mesh);

  for (let k = 0; k < 8; k++) {

    const a = (22.5 + 45 * k) * Math.PI / 180;

    const sc = makeScrew(MAT.blue());

    sc.position.set(Math.cos(a) * 0.84, Math.sin(a) * 0.84, 0.055);

    sc.rotation.z = Math.random() * TAU;

    mainPlate.add(sc);

  }

  [[-0.05, 0.55], [-0.42, 0.05], [0.25, -0.10]].forEach(p => {

    const j = makeJewel();

    j.position.set(p[0], p[1], 0.065);

    mainPlate.add(j);

  });

}

watch.add(mainPlate);



const barrel = new THREE.Group();

{

  const gear = new THREE.Mesh(gearGeo({ r: 0.30, teeth: 84, toothDepth: 0.024, depth: 0.022, spokes: 5, spokeR: 0.048, spokePos: 0.18 }), MAT.brass());

  gear.position.z = 0.028;

  barrel.add(gear);

  const drum = new THREE.Mesh(cylZ(0.235, 0.235, 0.095, 48), MAT.steelBrush());

  drum.position.z = 0.065;

  barrel.add(drum);

  [0.14, 0.19].forEach(r => {

    const t = new THREE.Mesh(new THREE.TorusGeometry(r, 0.005, 8, 48), MAT.gold());

    t.position.z = 0.115;

    barrel.add(t);

  });

  const arbour = new THREE.Mesh(cylZ(0.035, 0.035, 0.20, 20), MAT.gold());

  arbour.position.z = 0.08;

  barrel.add(arbour);

  const ratchet = new THREE.Mesh(gearGeo({ r: 0.15, teeth: 40, toothDepth: 0.016, depth: 0.024 }), MAT.steel());

  ratchet.position.z = 0.175;

  barrel.add(ratchet);

  const ratchetScrew = makeScrew(MAT.blue());

  ratchetScrew.position.z = 0.19;

  barrel.add(ratchetScrew);

  barrel.position.set(0.44, 0.30, 0);

}

watch.add(barrel);



const centerWheel = new THREE.Group();

{

  const gear = new THREE.Mesh(gearGeo({ r: 0.16, teeth: 64, toothDepth: 0.015, depth: 0.02, spokes: 5, spokeR: 0.026, spokePos: 0.096 }), MAT.brass());

  gear.position.z = 0.035;

  centerWheel.add(gear);

  const hub = new THREE.Mesh(cylZ(0.055, 0.055, 0.045, 24), MAT.gold());

  hub.position.z = 0.05;

  centerWheel.add(hub);

}

watch.add(centerWheel);



const thirdWheel = new THREE.Group();

{

  const gear = new THREE.Mesh(gearGeo({ r: 0.13, teeth: 56, toothDepth: 0.013, depth: 0.02, spokes: 4, spokeR: 0.021, spokePos: 0.078 }), MAT.brass());

  gear.position.z = 0.04;

  thirdWheel.add(gear);

  const hub = new THREE.Mesh(cylZ(0.04, 0.04, 0.04, 20), MAT.gold());

  hub.position.z = 0.052;

  thirdWheel.add(hub);

  thirdWheel.position.set(-0.26, 0.24, 0);

}

watch.add(thirdWheel);



const fourthWheel = new THREE.Group();

{

  const gear = new THREE.Mesh(gearGeo({ r: 0.075, teeth: 40, toothDepth: 0.009, depth: 0.016 }), MAT.gold());

  gear.position.z = 0.06;

  fourthWheel.add(gear);

  const hub = new THREE.Mesh(cylZ(0.03, 0.03, 0.05, 16), MAT.gold());

  hub.position.z = 0.075;

  fourthWheel.add(hub);

  const post = new THREE.Mesh(cylZ(0.014, 0.014, 0.24, 12), MAT.gold());

  post.position.z = 0.13;

  fourthWheel.add(post);

}

watch.add(fourthWheel);



const escapeWheel = new THREE.Group();

{

  const gear = new THREE.Mesh(gearGeo({ r: 0.13, teeth: 15, toothDepth: 0.016, depth: 0.018, spokes: 4, spokeR: 0.021, spokePos: 0.078 }), MAT.steel());

  gear.position.z = 0.045;

  escapeWheel.add(gear);

  const hub = new THREE.Mesh(cylZ(0.035, 0.035, 0.04, 16), MAT.steel());

  hub.position.z = 0.055;

  escapeWheel.add(hub);

  escapeWheel.position.set(-0.40, -0.30, 0);

}

watch.add(escapeWheel);



const palletFork = new THREE.Group();

{

  const arm = new THREE.Mesh(new THREE.BoxGeometry(0.03, 0.15, 0.018), MAT.steel());

  arm.position.y = 0.07;

  palletFork.add(arm);

  const hornL = new THREE.Mesh(new THREE.BoxGeometry(0.02, 0.055, 0.016), MAT.steel());

  hornL.position.set(-0.028, 0.138, 0);

  palletFork.add(hornL);

  const hornR = hornL.clone();

  hornR.position.x = 0.028;

  palletFork.add(hornR);

  const palletArm = new THREE.Mesh(new THREE.BoxGeometry(0.028, 0.13, 0.016), MAT.steel());

  palletArm.position.y = -0.06;

  palletFork.add(palletArm);

  const stoneL = new THREE.Mesh(new THREE.BoxGeometry(0.014, 0.022, 0.013), MAT.ruby());

  stoneL.position.set(-0.03, -0.12, 0);

  palletFork.add(stoneL);

  const stoneR = stoneL.clone();

  stoneR.position.x = 0.03;

  palletFork.add(stoneR);

  const hub = new THREE.Mesh(cylZ(0.045, 0.045, 0.05, 20), MAT.gold());

  palletFork.add(hub);

  palletFork.position.set(-0.168, -0.416, 0.075);

  palletFork.rotation.z = Math.atan2(-0.104, 0.208) - Math.PI / 2;

}

watch.add(palletFork);



const balance = new THREE.Group();

{

  const rim = new THREE.Mesh(new THREE.TorusGeometry(0.31, 0.026, 16, 128), MAT.gold());

  rim.position.z = 0.06;

  balance.add(rim);

  for (let k = 0; k < 4; k++) {

    const a = k * Math.PI / 2;

    const arm = new THREE.Mesh(new THREE.BoxGeometry(0.055, 0.26, 0.02), MAT.gold());

    arm.position.set(Math.cos(a) * 0.145, Math.sin(a) * 0.145, 0.06);

    arm.rotation.z = a;

    balance.add(arm);

  }

  for (let k = 0; k < 12; k++) {

    const a = (15 + 30 * k) * Math.PI / 180;

    const sc = new THREE.Mesh(cylZ(0.016, 0.016, 0.024, 12), MAT.gold());

    sc.position.set(Math.cos(a) * 0.31, Math.sin(a) * 0.31, 0.06);

    balance.add(sc);

  }

  const hub = new THREE.Mesh(cylZ(0.05, 0.05, 0.07, 20), MAT.gold());

  hub.position.z = 0.06;

  balance.add(hub);

  const staff = new THREE.Mesh(cylZ(0.012, 0.012, 0.24, 10), MAT.steel());

  staff.position.z = 0.10;

  balance.add(staff);

  const roller = new THREE.Mesh(cylZ(0.10, 0.10, 0.022, 32), MAT.gold());

  roller.position.z = 0.032;

  balance.add(roller);

  const pin = new THREE.Mesh(cylZ(0.017, 0.017, 0.04, 10), MAT.ruby());

  pin.position.set(0, -0.10, 0.032);

  balance.add(pin);

  balance.position.set(0.04, -0.52, 0);

}

watch.add(balance);



const hairspring = new THREE.Group();

{

  const spring = new THREE.Mesh(

    new THREE.TubeGeometry(new SpiralCurve(0.02, 0.19, 10.5), 420, 0.0075, 6, false),

    MAT.blue()

  );

  hairspring.add(spring);

  const collet = new THREE.Mesh(new THREE.TorusGeometry(0.028, 0.008, 8, 24), MAT.gold());

  collet.position.z = -0.005;

  hairspring.add(collet);

  const stud = new THREE.Mesh(cylZ(0.012, 0.012, 0.03, 10), MAT.steel());

  stud.position.set(0.19, 0, 0);

  hairspring.add(stud);

  hairspring.position.z = 0.12;

}

balance.add(hairspring);



const trainBridge = new THREE.Group();

{

  const box = new THREE.Mesh(new RoundedBoxGeometry(0.66, 0.26, 0.05, 4, 0.07), MAT.geneva());

  trainBridge.add(box);

  const j1 = makeJewel();

  j1.position.set(0.13, 0, 0.04);

  trainBridge.add(j1);

  const j2 = makeJewel();

  j2.position.set(-0.13, 0, 0.04);

  trainBridge.add(j2);

  const s1 = makeScrew(MAT.blue());

  s1.position.set(0.28, 0, 0.03);

  s1.rotation.z = Math.random() * TAU;

  trainBridge.add(s1);

  const s2 = makeScrew(MAT.blue());

  s2.position.set(-0.28, 0, 0.03);

  s2.rotation.z = Math.random() * TAU;

  trainBridge.add(s2);

  trainBridge.position.set(-0.13, 0.12, 0.135);

  trainBridge.rotation.z = Math.atan2(0.24, -0.26);

}

watch.add(trainBridge);



const barrelBridge = new THREE.Group();

{

  const ring = new THREE.Mesh(new THREE.ExtrudeGeometry(ringShape(0.16, 0.34), {

    depth: 0.05, bevelEnabled: true, bevelThickness: 0.01, bevelSize: 0.01, bevelSegments: 2, curveSegments: 48

  }), MAT.geneva());

  barrelBridge.add(ring);

  const s1 = makeScrew(MAT.blue());

  s1.position.set(0.226, 0.105, 0.06);

  s1.rotation.z = Math.random() * TAU;

  barrelBridge.add(s1);

  const s2 = makeScrew(MAT.blue());

  s2.position.set(-0.226, -0.105, 0.06);

  s2.rotation.z = Math.random() * TAU;

  barrelBridge.add(s2);

  barrelBridge.position.set(0.44, 0.30, 0.11);

}

watch.add(barrelBridge);



const balanceCock = new THREE.Group();

{

  const sector = new THREE.Mesh(new THREE.ExtrudeGeometry(annularSectorShape(0.10, 0.29, -170, -75), {

    depth: 0.05, bevelEnabled: true, bevelThickness: 0.008, bevelSize: 0.008, bevelSegments: 2, curveSegments: 32

  }), MAT.geneva());

  balanceCock.add(sector);

  const foot = new THREE.Mesh(new THREE.ExtrudeGeometry(discShape(0.085), {

    depth: 0.05, bevelEnabled: true, bevelThickness: 0.01, bevelSize: 0.01, bevelSegments: 2, curveSegments: 32

  }), MAT.geneva());

  foot.position.set(-0.1226, -0.2628, 0);

  balanceCock.add(foot);

  const footScrew = makeScrew(MAT.blue());

  footScrew.position.set(-0.1226, -0.2628, 0.06);

  footScrew.rotation.z = Math.random() * TAU;

  balanceCock.add(footScrew);

  const jewel = makeJewel();

  jewel.position.z = 0.055;

  balanceCock.add(jewel);

  const cap = new THREE.Mesh(cylZ(0.075, 0.075, 0.014, 28), MAT.gold());

  cap.position.z = 0.073;

  balanceCock.add(cap);

  const cs1 = makeScrew(MAT.blue());

  cs1.scale.setScalar(0.55);

  cs1.position.set(0.052, 0, 0.077);

  balanceCock.add(cs1);

  const cs2 = makeScrew(MAT.blue());

  cs2.scale.setScalar(0.55);

  cs2.position.set(-0.052, 0, 0.077);

  balanceCock.add(cs2);

  balanceCock.position.set(0.04, -0.52, 0.13);

}

watch.add(balanceCock);



const palletCock = new THREE.Group();

{

  const box = new THREE.Mesh(new RoundedBoxGeometry(0.32, 0.15, 0.05, 3, 0.06), MAT.geneva());

  palletCock.add(box);

  const jewel = makeJewel();

  jewel.position.z = 0.04;

  palletCock.add(jewel);

  const sc = makeScrew(MAT.blue());

  sc.position.set(0.10, 0, 0.03);

  sc.rotation.z = Math.random() * TAU;

  palletCock.add(sc);

  palletCock.position.set(-0.168, -0.416, 0.135);

  palletCock.rotation.z = Math.atan2(-0.104, 0.208);

}

watch.add(palletCock);



const dial = new THREE.Group();

{

  const ring = new THREE.Mesh(new THREE.ExtrudeGeometry(ringShape(0.83, 0.92), {

    depth: 0.025, bevelEnabled: true, bevelThickness: 0.006, bevelSize: 0.006, bevelSegments: 2, curveSegments: 64

  }), MAT.dialBlack());

  ring.position.z = 0.152;

  dial.add(ring);

  for (let k = 0; k < 12; k++) {

    const a = k * Math.PI / 6;

    const L = k % 3 === 0 ? 0.22 : 0.15;

    const b = new THREE.Mesh(new THREE.BoxGeometry(0.045, L, 0.028), MAT.lume());

    b.position.set(Math.cos(a) * 0.875, Math.sin(a) * 0.875, 0.175);

    b.rotation.z = a;

    dial.add(b);

  }

  for (let m = 0; m < 60; m++) {

    if (m % 5 === 0) continue;

    const a = m * Math.PI / 30;

    const d = new THREE.Mesh(cylZ(0.011, 0.011, 0.012, 12), MAT.lumeDim());

    d.position.set(Math.cos(a) * 0.855, Math.sin(a) * 0.855, 0.172);

    dial.add(d);

  }

}

watch.add(dial);



const hourHand = new THREE.Group();

{

  const mesh = new THREE.Mesh(new THREE.ExtrudeGeometry(handShape(0.44, 0.055), {

    depth: 0.016, bevelEnabled: true, bevelThickness: 0.004, bevelSize: 0.004, bevelSegments: 2

  }), MAT.steel());

  hourHand.add(mesh);

  const lume = new THREE.Mesh(new THREE.ExtrudeGeometry(handShape(0.28, 0.028), {

    depth: 0.008, bevelEnabled: false

  }), MAT.lume());

  lume.position.set(0.13, 0, 0.012);

  hourHand.add(lume);

  const cap = new THREE.Mesh(cylZ(0.028, 0.028, 0.02, 20), MAT.gold());

  cap.position.z = 0.014;

  hourHand.add(cap);

  hourHand.position.z = 0.235;

}

watch.add(hourHand);



const minuteHand = new THREE.Group();

{

  const mesh = new THREE.Mesh(new THREE.ExtrudeGeometry(handShape(0.62, 0.045), {

    depth: 0.016, bevelEnabled: true, bevelThickness: 0.004, bevelSize: 0.004, bevelSegments: 2

  }), MAT.steel());

  minuteHand.add(mesh);

  const lume = new THREE.Mesh(new THREE.ExtrudeGeometry(handShape(0.40, 0.022), {

    depth: 0.008, bevelEnabled: false

  }), MAT.lume());

  lume.position.set(0.19, 0, 0.012);

  minuteHand.add(lume);

  const cap = new THREE.Mesh(cylZ(0.028, 0.028, 0.02, 20), MAT.gold());

  cap.position.z = 0.014;

  minuteHand.add(cap);

  minuteHand.position.z = 0.255;

}

watch.add(minuteHand);



const secondHand = new THREE.Group();

{

  const needle = new THREE.Mesh(new THREE.ExtrudeGeometry(handShape(0.66, 0.010), {

    depth: 0.008, bevelEnabled: false

  }), MAT.blue());

  secondHand.add(needle);

  const cw = new THREE.Mesh(cylZ(0.034, 0.034, 0.012, 20), MAT.gold());

  cw.position.set(-0.09, 0, 0.004);

  secondHand.add(cw);

  const dot = new THREE.Mesh(cylZ(0.026, 0.026, 0.012, 20), MAT.lume());

  dot.position.set(0.55, 0, 0.004);

  secondHand.add(dot);

  const cap = new THREE.Mesh(cylZ(0.03, 0.03, 0.014, 20), MAT.gold());

  cap.position.z = 0.006;

  secondHand.add(cap);

  secondHand.position.z = 0.275;

}

watch.add(secondHand);



const INFO = {

  case: { name: '表壳', en: 'CASE', desc: '42mm 圆形表壳，由整块 904L 精钢切割而成，侧面镜面抛光与拉丝交替处理，光影流转间尽显质感。', specs: [['材质', '904L 精钢'], ['尺寸', '42 mm'], ['工艺', '抛光 / 拉丝交替打磨']] },

  bezel: { name: '表圈', en: 'BEZEL', desc: '高抛光斜面表圈，以柔和弧度收拢光线，勾勒出镂空表盘的深邃轮廓。', specs: [['材质', '抛光精钢'], ['工艺', '高光倒角']] },

  crown: { name: '表冠', en: 'CROWN', desc: '凹槽式表冠，防滑纹理便于上链与调校；旋入式结构确保 50 米防水。', specs: [['材质', '精钢'], ['工艺', '防滑凹槽纹'], ['功能', '手动上链 · 调时']] },

  crystal: { name: '蓝宝石水晶玻璃', en: 'SAPPHIRE CRYSTAL', desc: '弧形蓝宝石水晶玻璃，双面防眩光涂层，莫氏硬度 9，仅次于钻石，为机芯提供一览无余的窗口。', specs: [['材质', '蓝宝石水晶'], ['硬度', '莫氏 9'], ['处理', '双面防眩涂层']] },

  dial: { name: '镂空刻度环', en: 'CHAPTER RING', desc: '镂空刻度环与立体夜光时标，摒弃传统表盘，让整个轮系成为主角。', specs: [['材质', '精钢'], ['工艺', '镂空 + 立体夜光']] },

  hourHand: { name: '时针', en: 'HOUR HAND', desc: '抛光剑形时针，内嵌 Super-LumiNova 夜光涂层，暗处亦清晰可读。', specs: [['材质', '抛光精钢'], ['夜光', 'Super-LumiNova']] },

  minuteHand: { name: '分针', en: 'MINUTE HAND', desc: '与时针同款的剑形分针，末端纤细锐利，直指分钟刻度。', specs: [['材质', '抛光精钢'], ['夜光', 'Super-LumiNova']] },

  secondHand: { name: '秒针', en: 'SECOND HAND', desc: '烤蓝精钢秒针，纤细如丝，尾端圆形配重与夜光圆点形成优雅平衡。', specs: [['材质', '烤蓝精钢'], ['夜光', '尖端圆点']] },

  barrel: { name: '主发条盒', en: 'MAINSPRING BARREL', desc: '主发条盒——机芯的动力之源。盒内发条储存约 72 小时动力，经齿轮系逐级传递。', specs: [['功能', '72 小时动力储存'], ['材质', '精钢发条']] },

  centerWheel: { name: '中心轮', en: 'CENTRE WHEEL', desc: '中心轮直接与发条盒齿轮啮合，驱动时、分指针，是轮系的第二级。', specs: [['材质', '黄铜镀金'], ['功能', '驱动时 / 分针']] },

  thirdWheel: { name: '三轮', en: 'THIRD WHEEL', desc: '三轮承接中心轮动力，继续放大转速，是能量传递的中枢。', specs: [['材质', '黄铜镀金'], ['功能', '传动加速']] },

  fourthWheel: { name: '秒轮', en: 'FOURTH WHEEL', desc: '秒轮与中心同轴，以每分钟一周的稳定速度驱动中央秒针。', specs: [['材质', '黄铜镀金'], ['功能', '驱动中央秒针']] },

  escapeWheel: { name: '擒纵轮', en: 'ESCAPE WHEEL', desc: '15 齿擒纵轮，每次擒纵叉摆动释放一齿，把持续动力切分为清脆的滴答声。', specs: [['材质', '抛光精钢'], ['齿数', '15'], ['功能', '分解放动能量']] },

  palletFork: { name: '擒纵叉', en: 'PALLET FORK', desc: '擒纵叉以红宝石叉瓦与擒纵轮啮合，将能量递送给摆轮，维持其永不疲倦的摆动。', specs: [['材质', '精钢'], ['宝石', '红宝石叉瓦'], ['功能', '擒纵锁接']] },

  balance: { name: '摆轮', en: 'BALANCE WHEEL', desc: '摆轮——机芯的心脏。配重螺丝与双臂环设计，以 4 Hz 频率稳定摆动，主宰走时精度。', specs: [['材质', '镀金双金属'], ['频率', '4 Hz (28\'800 vph)'], ['功能', '调速振荡']] },

  hairspring: { name: '游丝', en: 'HAIRSPRING', desc: '蓝钢宝玑式游丝，与摆轮构成振荡系统，如同微型的呼吸，决定每一次滴答的节奏。', specs: [['材质', '蓝钢游丝'], ['结构', '宝玑上绕'], ['功能', '等时振荡']] },

  mainPlate: { name: '主夹板', en: 'MAIN PLATE', desc: '镀铑主夹板，遍布传统珍珠纹打磨，是支撑全部轮系与夹板的基石。', specs: [['材质', '镀铑黄铜'], ['工艺', '珍珠纹打磨']] },

  barrelBridge: { name: '发条盒夹板', en: 'BARREL BRIDGE', desc: '发条盒夹板，日内瓦条纹打磨，以蓝钢螺丝固定，镶嵌红宝石轴承。', specs: [['材质', '镀铑'], ['工艺', '日内瓦条纹']] },

  trainBridge: { name: '轮系夹板', en: 'TRAIN BRIDGE', desc: '轮系夹板横跨中心轮与三轮，两端红宝石轴承确保轮轴运转顺滑。', specs: [['材质', '镀铑'], ['工艺', '日内瓦条纹 + 倒角']] },

  balanceCock: { name: '摆轮夹板', en: 'BALANCE COCK', desc: '摆轮夹板以优雅曲线悬架于摆轮之上，末端蓝钢螺丝固定，其上镶嵌轴承宝石。', specs: [['材质', '镀铑'], ['工艺', '雕刻曲线']] },

  palletCock: { name: '擒纵叉夹板', en: 'PALLET COCK', desc: '擒纵叉夹板小巧精致，固定擒纵叉枢轴，配红宝石轴承。', specs: [['材质', '镀铑'], ['功能', '固定擒纵叉']] },

  jewel: { name: '红宝石轴承', en: 'JEWEL BEARING', desc: '人造红宝石轴承，摩擦系数极低、经久耐磨，全表共 19 颗。', specs: [['材质', '人造红宝石'], ['数量', '19 石'], ['功能', '减摩轴承']] },

  screw: { name: '蓝钢螺丝', en: 'BLUED SCREW', desc: '蓝钢螺丝经传统烤蓝工艺处理，淬火后呈现深邃的湛蓝光泽。', specs: [['材质', '蓝钢'], ['工艺', '传统烤蓝']] },

  caseback: { name: '透视底盖', en: 'CASE BACK', desc: '蓝宝石透视底盖，将机芯背面同样精湛的打磨工艺展露无遗。', specs: [['材质', '精钢'], ['窗口', '蓝宝石玻璃'], ['功能', '透视机芯']] }

};



const PART_LIST = [

  ['case', '表壳', 'CASE', '#ccd4df'],

  ['bezel', '表圈', 'BEZEL', '#e6eaf1'],

  ['crown', '表冠', 'CROWN', '#b9c2cf'],

  ['crystal', '蓝宝石水晶玻璃', 'SAPPHIRE CRYSTAL', '#8fd0ff'],

  ['dial', '镂空刻度环', 'CHAPTER RING', '#4a515f'],

  ['hourHand', '时针', 'HOUR HAND', '#dbe2ec'],

  ['minuteHand', '分针', 'MINUTE HAND', '#dbe2ec'],

  ['secondHand', '秒针', 'SECOND HAND', '#4a6fe0'],

  ['barrel', '主发条盒', 'MAINSPRING BARREL', '#c9a45c'],

  ['centerWheel', '中心轮', 'CENTRE WHEEL', '#d8b34f'],

  ['thirdWheel', '三轮', 'THIRD WHEEL', '#d8b34f'],

  ['fourthWheel', '秒轮', 'FOURTH WHEEL', '#d8b34f'],

  ['escapeWheel', '擒纵轮', 'ESCAPE WHEEL', '#dfe2e9'],

  ['palletFork', '擒纵叉', 'PALLET FORK', '#cfd6e0'],

  ['balance', '摆轮', 'BALANCE WHEEL', '#e2c163'],

  ['hairspring', '游丝', 'HAIRSPRING', '#3f66d8'],

  ['mainPlate', '主夹板', 'MAIN PLATE', '#ccd4df'],

  ['barrelBridge', '发条盒夹板', 'BARREL BRIDGE', '#ccd4df'],

  ['trainBridge', '轮系夹板', 'TRAIN BRIDGE', '#ccd4df'],

  ['balanceCock', '摆轮夹板', 'BALANCE COCK', '#ccd4df'],

  ['palletCock', '擒纵叉夹板', 'PALLET COCK', '#ccd4df'],

  ['jewel', '红宝石轴承', 'JEWEL BEARING', '#c01830'],

  ['screw', '蓝钢螺丝', 'BLUED SCREW', '#2e56c8'],

  ['caseback', '透视底盖', 'CASE BACK', '#ccd4df']

];



const EXPLODE = {

  crystal: [0, 0, 1.2], bezel: [0, 0, 0.95], crown: [0.6, 0, 0], dial: [0, 0, 0.5],

  hourHand: [0, 0, 0.62], minuteHand: [0, 0, 0.82], secondHand: [0, 0, 1.02],

  barrelBridge: [0, 0, 0.44], trainBridge: [0, 0, 0.40], balanceCock: [0, 0, 0.36], palletCock: [0, 0, 0.32],

  barrel: [0, 0, -0.34], centerWheel: [0, 0, -0.22], thirdWheel: [0, 0, -0.26], fourthWheel: [0, 0, -0.30],

  escapeWheel: [0, 0, -0.28], palletFork: [0, 0, -0.33], balance: [0, 0, -0.42],

  mainPlate: [0, 0, -0.55], caseback: [0, 0, -0.85]

};



const parts = {};

function register(id, group) {

  parts[id] = { group, meshes: null, home: group.position.clone(), explode: null, explodedPos: null, name: INFO[id].name, en: INFO[id].en };

  if (EXPLODE[id]) {

    parts[id].explode = new THREE.Vector3(EXPLODE[id][0], EXPLODE[id][1], EXPLODE[id][2]);

    parts[id].explodedPos = parts[id].home.clone().add(parts[id].explode);

  }

  group.userData.partId = id;

  group.traverse(o => { if (o.userData.partId === undefined) o.userData.partId = id; });

}

register('case', caseGroup);

register('caseback', caseback);

register('bezel', bezel);

register('crystal', crystal);

register('crown', crownGroup);

register('mainPlate', mainPlate);

register('barrel', barrel);

register('centerWheel', centerWheel);

register('thirdWheel', thirdWheel);

register('fourthWheel', fourthWheel);

register('escapeWheel', escapeWheel);

register('palletFork', palletFork);

register('hairspring', hairspring);

register('balance', balance);

register('trainBridge', trainBridge);

register('barrelBridge', barrelBridge);

register('balanceCock', balanceCock);

register('palletCock', palletCock);

register('dial', dial);

register('hourHand', hourHand);

register('minuteHand', minuteHand);

register('secondHand', secondHand);

parts.jewel = { group: null, meshes: jewelMeshes, home: null, explode: null, explodedPos: null, name: INFO.jewel.name, en: INFO.jewel.en };

parts.screw = { group: null, meshes: screwMeshes, home: null, explode: null, explodedPos: null, name: INFO.screw.name, en: INFO.screw.en };



crystal.userData.noRay = true;

crystal.traverse(o => { o.userData.noRay = true; });



watch.traverse(o => { if (o.isMesh) { o.castShadow = true; o.receiveShadow = true; } });

crystal.traverse(o => { if (o.isMesh) { o.castShadow = false; o.receiveShadow = false; } });



const composer = new EffectComposer(renderer);

composer.addPass(new RenderPass(scene, camera));

const bloomPass = new UnrealBloomPass(new THREE.Vector2(innerWidth, innerHeight), 0.32, 0.45, 1.3);

composer.addPass(bloomPass);

composer.addPass(new OutputPass());

composer.setPixelRatio(Math.min(devicePixelRatio, 2));



const legendEl = document.getElementById('legend');

PART_LIST.forEach(p => {

  const chip = document.createElement('div');

  chip.className = 'chip';

  chip.innerHTML = `<span class="dot" style="background:${p[3]}"></span>${p[1]}`;

  chip.addEventListener('mouseenter', () => { hoverPart = p[0]; });

  chip.addEventListener('mouseleave', () => { if (hoverPart === p[0]) hoverPart = null; });

  chip.addEventListener('click', () => { pinPart(p[0], null); });

  legendEl.appendChild(chip);

});



const tooltip = document.getElementById('tooltip');

const infoPanel = document.getElementById('info');

const infoName = document.getElementById('infoName');

const infoEn = document.getElementById('infoEn');

const infoDesc = document.getElementById('infoDesc');

const infoSpecs = document.getElementById('infoSpecs');

document.getElementById('infoClose').addEventListener('click', clearPin);



function showInfo(id) {

  const d = INFO[id];

  if (!d) return;

  infoName.textContent = d.name;

  infoEn.textContent = d.en;

  infoDesc.textContent = d.desc;

  infoSpecs.innerHTML = d.specs.map(s => `<tr><td>${s[0]}</td><td>${s[1]}</td></tr>`).join('');

  infoPanel.classList.add('open');

}

function closeInfo() { infoPanel.classList.remove('open'); }



const ray = new THREE.Raycaster();

const ndc = new THREE.Vector2();

let hoverPart = null;

let hlCurrent = null;

let pinnedPart = null;

let pinnedObj = null;

let pinEl = null;



function forEachMeshOf(id, fn) {

  const p = parts[id];

  if (!p) return;

  if (p.group) p.group.traverse(o => { if (o.isMesh) fn(o); });

  else if (p.meshes) p.meshes.forEach(m => m.traverse(o => { if (o.isMesh) fn(o); }));

}



const hlStore = new WeakMap();

function setPartHighlight(id, on) {

  if (!parts[id]) return;

  forEachMeshOf(id, o => {

    const m = o.material;

    if (!m || m.emissive === undefined) return;

    if (on) {

      if (!hlStore.has(o)) hlStore.set(o, { e: m.emissive.getHex(), i: m.emissiveIntensity });

      m.emissive.set(0x4d7dff);

      m.emissiveIntensity = 0.45;

    } else if (hlStore.has(o)) {

      const s = hlStore.get(o);

      m.emissive.setHex(s.e);

      m.emissiveIntensity = s.i;

      hlStore.delete(o);

    }

  });

}



function findPartId(obj) {

  let o = obj;

  while (o) {

    if (o.userData && o.userData.noRay) return null;

    if (o.userData && o.userData.partId) return o.userData.partId;

    o = o.parent;

  }

  return null;

}



function pick(e) {

  ndc.set((e.clientX / innerWidth) * 2 - 1, -(e.clientY / innerHeight) * 2 + 1);

  ray.setFromCamera(ndc, camera);

  const hits = ray.intersectObjects(watch.children, true);

  for (const h of hits) {

    const id = findPartId(h.object);

    if (id) return { id, obj: h.object };

  }

  return null;

}



function pinPart(id, obj) {

  clearPin(false);

  pinnedPart = id;

  pinnedObj = obj || (parts[id].meshes ? parts[id].meshes[0] : parts[id].group);

  pinEl = document.createElement('div');

  pinEl.className = 'pin-label';

  pinEl.textContent = INFO[id].name;

  document.body.appendChild(pinEl);

  showInfo(id);

}



function clearPin(close) {

  pinnedPart = null;

  pinnedObj = null;

  if (pinEl) { pinEl.remove(); pinEl = null; }

  if (close !== false) closeInfo();

}



window.addEventListener('keydown', e => { if (e.key === 'Escape') clearPin(); });



let downInfo = null;

renderer.domElement.addEventListener('pointerdown', e => {

  downInfo = { x: e.clientX, y: e.clientY, t: performance.now() };

});

renderer.domElement.addEventListener('pointermove', e => {

  if (downInfo) return;

  const res = pick(e);

  hoverPart = res ? res.id : null;

  if (res) {

    tooltip.textContent = `${INFO[res.id].name} · ${INFO[res.id].en}`;

    tooltip.style.left = Math.min(e.clientX + 16, innerWidth - 220) + 'px';

    tooltip.style.top = (e.clientY + 18) + 'px';

    tooltip.style.opacity = '1';

  } else {

    tooltip.style.opacity = '0';

  }

});

renderer.domElement.addEventListener('pointerup', e => {

  if (!downInfo) return;

  const moved = Math.hypot(e.clientX - downInfo.x, e.clientY - downInfo.y) > 5 || performance.now() - downInfo.t > 600;

  downInfo = null;

  if (moved) return;

  const res = pick(e);

  if (res) pinPart(res.id, res.obj);

  else clearPin();

});



let exploded = false;

let paused = false;

document.getElementById('btnExplode').addEventListener('click', function () {

  exploded = !exploded;

  this.classList.toggle('active', exploded);

  this.textContent = exploded ? '复原视图' : '爆炸视图';

});

document.getElementById('btnPause').addEventListener('click', function () {

  paused = !paused;

  this.classList.toggle('active', paused);

  this.textContent = paused ? '继续' : '暂停';

  if (paused) controls.autoRotate = false;

});

document.getElementById('btnReset').addEventListener('click', () => {

  flyTo(HOME_POS, HOME_TARGET, 1.0);

});



let tween = null;

function flyTo(pos, targetPos, dur) {

  tween = { t: 0, dur, fromPos: camera.position.clone(), toPos: pos.clone(), fromT: controls.target.clone(), toT: targetPos.clone() };

  controls.enabled = false;

  controls.autoRotate = false;

}



const clock = new THREE.Clock();

let simTime = 0;

const s0 = (31 / 60) * TAU;

const m0 = ((10 + 31 / 60) / 60) * TAU;

const h0 = ((10 + 10 / 60) / 12) * TAU;

let sAngle = s0, mAngle = m0, hAngle = h0;



const tmpV = new THREE.Vector3();



function animate() {

  requestAnimationFrame(animate);

  const dt = Math.min(clock.getDelta(), 0.1);

  if (!paused) simTime += dt;

  const st = simTime;



  if (tween) {

    tween.t += dt;

    const e = Math.min(tween.t / tween.dur, 1);

    const k = 1 - Math.pow(1 - e, 3);

    camera.position.lerpVectors(tween.fromPos, tween.toPos, k);

    controls.target.lerpVectors(tween.fromT, tween.toT, k);

    if (e >= 1) { tween = null; controls.enabled = true; lastInteract = performance.now(); }

  }



  if (!controls.autoRotate && !paused && controls.enabled && !tween && performance.now() - lastInteract > 3500) {

    controls.autoRotate = true;

  }

  controls.update();



  const k = 1 - Math.exp(-dt * 4.5);

  for (const id in parts) {

    const p = parts[id];

    if (!p.explode) continue;

    p.group.position.lerp(exploded ? p.explodedPos : p.home, k);

  }



  sAngle = s0 + st * TAU / 60;

  mAngle = m0 + st * TAU / 3600;

  hAngle = h0 + st * TAU / 43200;

  hourHand.rotation.z = hAngle;

  minuteHand.rotation.z = mAngle;

  secondHand.rotation.z = sAngle;

  fourthWheel.rotation.z = sAngle;

  barrel.rotation.z = st * 0.1;

  centerWheel.rotation.z = -st * 0.8;

  thirdWheel.rotation.z = st * 3.2;

  escapeWheel.rotation.z = Math.floor(st * 3.2) * (TAU / 15);

  palletFork.rotation.z = 0.15 * Math.tanh(4 * Math.sin(TAU * 1.6 * st - 0.35));

  balance.rotation.z = 4.1 * Math.sin(TAU * 1.6 * st) * (1 + 0.05 * Math.sin(st * 0.8));

  hairspring.scale.setScalar(1 + 0.05 * Math.sin(TAU * 1.6 * st));



  const want = pinnedPart || hoverPart;

  if (want !== hlCurrent) {

    if (hlCurrent) setPartHighlight(hlCurrent, false);

    if (want) setPartHighlight(want, true);

    hlCurrent = want;

  }

  if (pinnedPart) {

    const pulse = 0.4 + 0.2 * Math.sin(performance.now() * 0.005);

    forEachMeshOf(pinnedPart, o => { if (o.material && o.material.emissiveIntensity !== undefined) o.material.emissiveIntensity = pulse; });

  }

  renderer.domElement.style.cursor = want ? 'pointer' : '';



  if (pinnedObj) {

    pinnedObj.getWorldPosition(tmpV);

    tmpV.project(camera);

    if (tmpV.z < 1) {

      pinEl.style.opacity = '1';

      pinEl.style.left = (tmpV.x * 0.5 + 0.5) * innerWidth + 'px';

      pinEl.style.top = (1 - (tmpV.y * 0.5 + 0.5)) * innerHeight - 30 + 'px';

    } else {

      pinEl.style.opacity = '0';

    }

  }



  composer.render();

}



flyTo(HOME_POS, HOME_TARGET, 2.6);

animate();



setTimeout(() => {

  const loading = document.getElementById('loading');

  loading.style.opacity = '0';

  setTimeout(() => loading.remove(), 950);

}, 400);



addEventListener('resize', () => {

  camera.aspect = innerWidth / innerHeight;

  camera.updateProjectionMatrix();

  renderer.setSize(innerWidth, innerHeight);

  composer.setSize(innerWidth, innerHeight);

});

</script>

</body>

</html>

ink 08-13 16:52

11楼

用gpt5.6sol中档生成的，效果也还行，就是太暗了
role_c 08-13 17:00

12楼

佬，你这个跑的时候，思维链是什么样的
小杨 08-13 17:03

13楼

gpt生成的看起来还不错
道友楼主 08-13 17:03

14楼

这样的。我看不懂有什么区别。
传奇睡觉王 08-13 17:18

15楼

GLM 5.2
